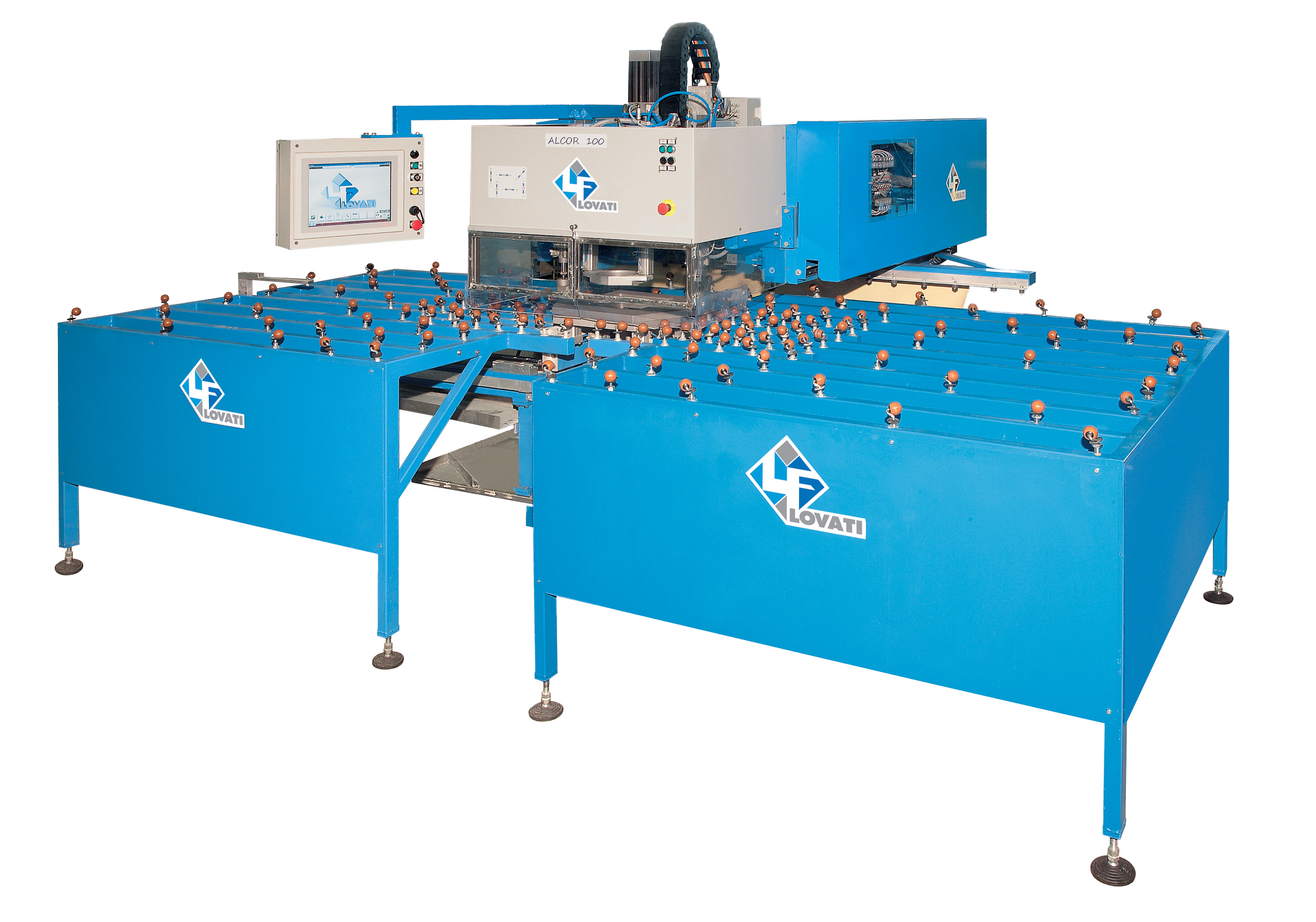

Numerical control machine with one double head to perform holes, routings, notches, pins and screw inserts and to grind and polish round and shaped corners.
6 axis machine with two centering bars, controlled by PX and PY axis. Bars are automatically moved to reach correct working position. Glass is blocked by pneumatic cylinders and it is ready to be worked by drill bits, routers or wheels.
ALCOR has an integrated CAD-CAM, touch screen numerical control, teleassistance, program transmission via USB/Ethernet card
CUSTOMIZATION: - Special laser system for hole centering - Custom made supporting table
| Glass thickness |
3-30 mm |
| Corner ground and polished | 5-100 mm |
| Max. hole diameter | 80 mm |
| Max. routing X / Y axis | 200 mm |
| Upper spindle speed | 12 000 rpm |
| Lower spindle speed | 4 000 rpm |
| Max glass size | 4300x2100 mm |
| Working table height | 1050 mm |
| Table dimension | 400x1775 mm |
| Total power | 18 kw |
| Compressed air pressure | 7 BAR min |
