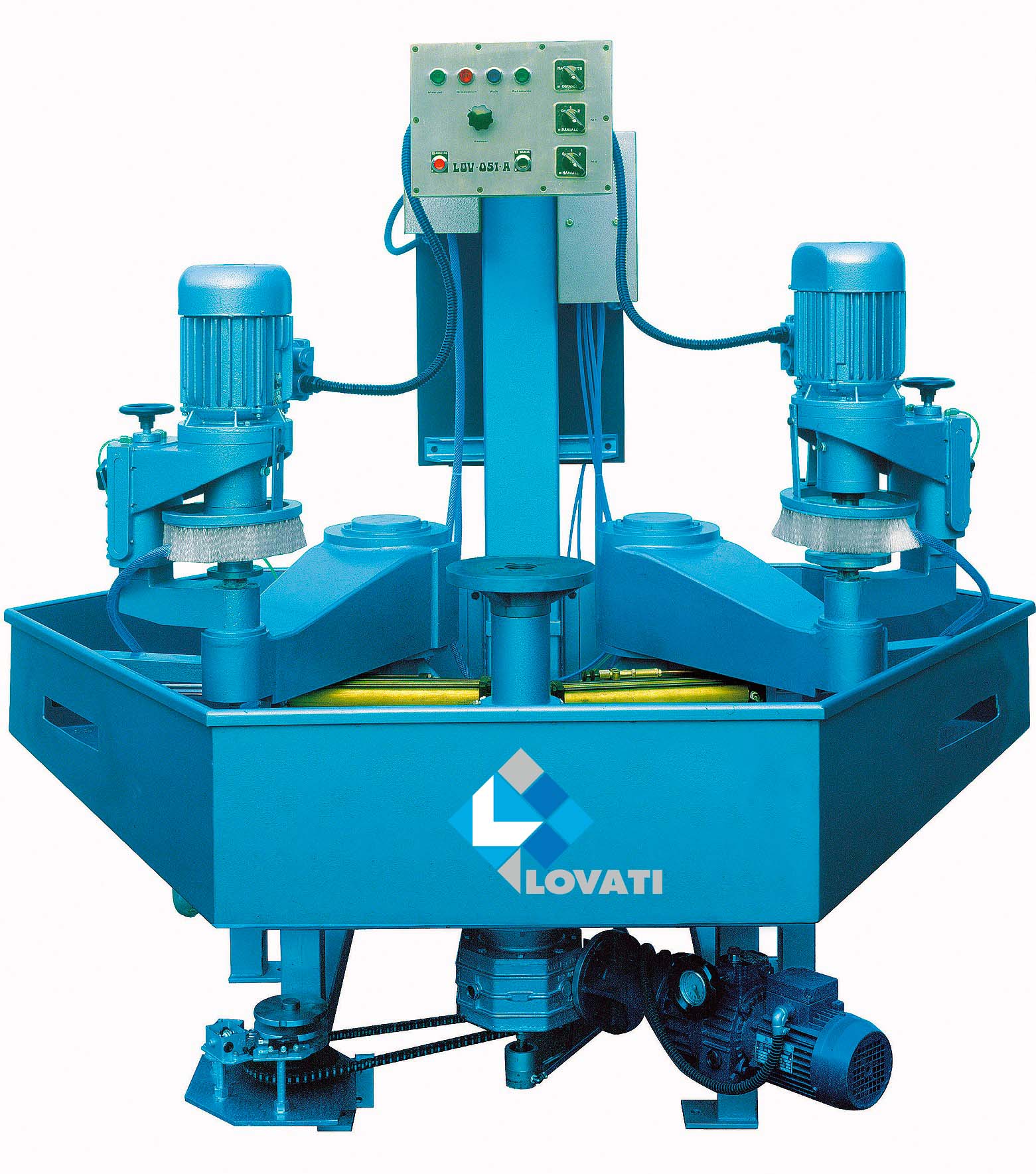

Automatic machine with template for shaped glasses
DIMAPRO grinds and polishes any kind of edge profile on round, oval, square and rectangular, with round angle, glass sheets.
THe machine can produce exact and perfect shaped glasses in each working cicle, by means of an additional template. Wheels come in and out automatically without any opearator intervention. DIMAPRO is partucularly fast and suitable for big glass production. The machine can be equipped with two edge grinding groups or one edge grinding and one polishing group.
| DIMAPRO 1000 | DIMAPRO P 1000 | DIMAPRO 1600 | DIMAPRO P 1600 | |
| Total wheels number | 2 | 2 | 2 | 2 |
| Edging wheels number | 2 | 1 | 2 | 1 |
| Polishing wheels number | - | 1 | - | 1 |
| Glass size | 75 - 1000 mm | 75 - 1000 mm | 270 - 1600 mm | 270 - 1600 mm |
| Glass thikness | 2 - 20 mm | 2 - 10 mm | 2 - 20 mm | 2 - 10 mm |
| Rotation speed | 0,5 - 10 rpm | 0,5 - 10 rpm | 0,5 - 10 rpm | 0,5 - 10 rpm |
| Glass lenght/width ratio or diagonal/width ratio for rectangular glass | 2:1 max | 2:1 max | 2:1 max | 2:1 max |
| Number of motors | 5 | 5 | 5 | 5 |
| Total power | 7,5 hp | 7,5 hp | 8 hp | 8 hp |
| Overall dimensions | 2000x1400x1850mm | 2000x1400x1850mm | 2300x1800x1900mm | 2300x1800x1900mm |
